Nutrients

STATE OF CASCO BAY

Condition of the Bay

Nutrient Pollution Puts Bay Water Quality at Risk

Community Efforts to Protect Water Quality and the Bay’s Natural Resilience Have Prevented Widespread Impacts

WHY IT MATTERS

Nutrients like nitrogen and phosphorus are essential to all life, but high levels in aquatic ecosystems can sometimes fertilize excessive growth of phytoplankton and other algae. The consequences can be profound: harmful algae blooms, low dissolved oxygen, disappearance of eelgrass and kelp, loss of marine habitat, declines in marine harvests, coastal acidification, even fish kills. While phosphorus is often the nutrient of primary concern in Maine lakes, nitrogen is more likely to be a primary concern in Casco Bay.

Nutrients entering Casco Bay come predominately from three sources: wastewater treatment facilities, direct atmospheric deposition, and runoff (including stormwater, combined sewer overflows, and river discharges). Recent data provide good estimates of atmospheric, wastewater, and tributary loads, but the size of the runoff component is not as well understood.

Data from the 1990s and early 2000s indicated that Casco Bay’s overall nitrogen load was low compared to most other large estuaries in the northeastern U.S. However, the nitrogen loading is concentrated near Portland, raising local concerns.

Several nutrient sources of potential importance to Casco Bay are not well characterized because of lack of recent, reliable data, notably:

STATUS & TRENDS

Documented Nitrogen Loads from Three Sources

Tributaries

The Royal and Presumpscot rivers account for most of the 442 metric tons per year of nitrogen entering the bay from tributaries.
Estimated nitrogen loads from rivers and streams entering the Bay are about 440 metric tons per year. About two thirds of that nitrogen enters the Bay from the Royal and Presumpscot Rivers. Tributaries carry nitrogen from all upstream sources, including agriculture, runoff, and wastewater.

Wastewater

Portland and South Portland account for most of the 424 metric tons per year of nitrogen from wastewater discharged into the bay.
Compared to tributaries, direct wastewater discharges of nitrogen to Casco Bay are slightly lower, on the order of 425 metric tons per year. Well over three quarters of those discharges occur in Portland and South Portland.

Atmospheric Deposition

Atmospheric deposition of nitrogen is about 135 metric tons per year.
Direct atmospheric deposition of nitrogen is a relatively small, and declining, share of nitrogen entering the Bay. “Atmospheric deposition” transfers airborne pollutants, including ammonium and nitrate, to the surface of Casco Bay, via rainfall and dust.

*Total Nitrogen (TN) includes the sum of nitrogen from ammonium (NH4+), nitrate (NO3-), nitrite (NO2-), and organic nitrogen in water. Source: University of Maine, Maine Department of Environmental Protection (DEP), and National Atmospheric Deposition Program. CBEP estimates of annual loads based on most recent available data.

Total Nitrogen Regularly Exceeds Water Quality Thresholds

Nitrogen levels in the Outer Bay and Inner Bay typically did not exceed Maine DEP thresholds. The Royal River estuary frequently exceeded the thresholds.
Nitrogen levels were higher in the tidal rivers and lower in the bay waters.

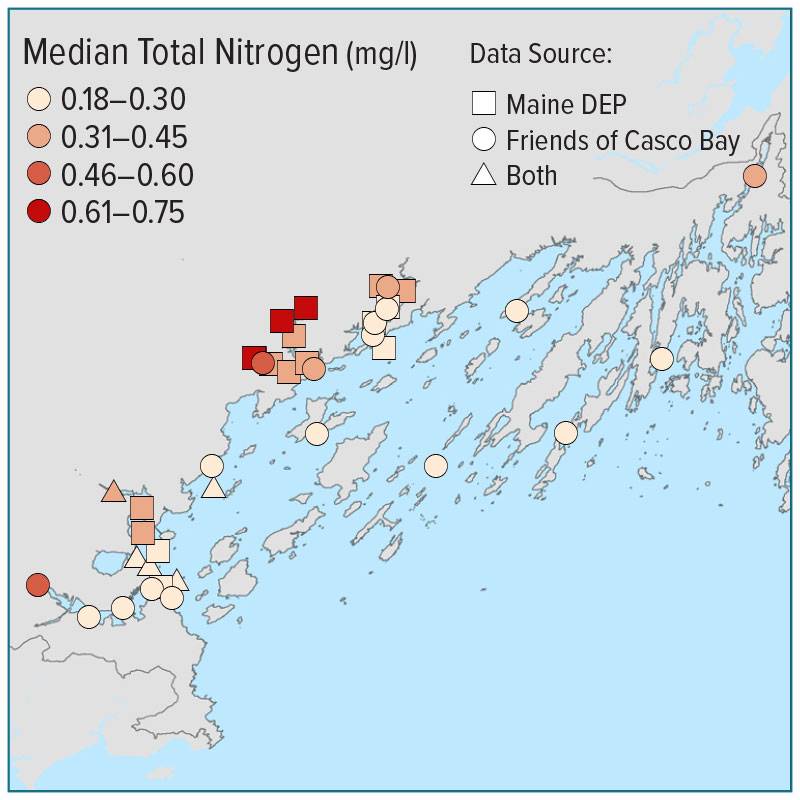

Elevated nitrogen levels have been observed regularly in portions of Casco Bay, especially in the tidal estuaries of the Royal, Presumpscot and Fore Rivers. Graph: Data collected from 2015 through 2019 by Friends of Casco Bay and Maine Department of Environmental Protection show that levels above DEP’s advisory thresholds (0.32 mg/l TN to protect eelgrass; 0.45 mg/l TN to reduce risk of low dissolved oxygen) occurred in most areas. Map: Typical nitrogen concentrations are higher in Casco Bay’s restricted bays and tidal tributaries than in the Bay’s open waters, where tidal currents facilitate waters mixing.

Long-Term Decline in Atmospheric Deposition of Nitrogen

Data show that nitrogen deposition decreased steadily from 2000 to 2019.
The rate of atmospheric deposition of nitrogen at a DEP monitoring station in Freeport, Maine is declining. Total atmospheric loads to Casco Bay have dropped roughly a third in recent decades, mirroring regional trends. In recent years (2015 through 2019), the annual rate of atmospheric nitrogen deposition at the monitoring station in Freeport has been about 2.5 kg nitrogen per hectare. The elevated level in 2012 was caused by an unknown, but apparently short-term, local source.
Two men sit on a dock with scientific equipment to collect nutrient data.
Collecting nutrient data in Casco Bay. Photo: CBEP

Nitrogen Decreasing Over Time

Long-term data on total nitrogen show declines at three of five locations that have been monitored regularly by Friends of Casco Bay for more than ten years. Downward trends at the other sites are not strong enough to distinguish clearly from seasonal, year to year, and other sources of variation.

successes & challenges

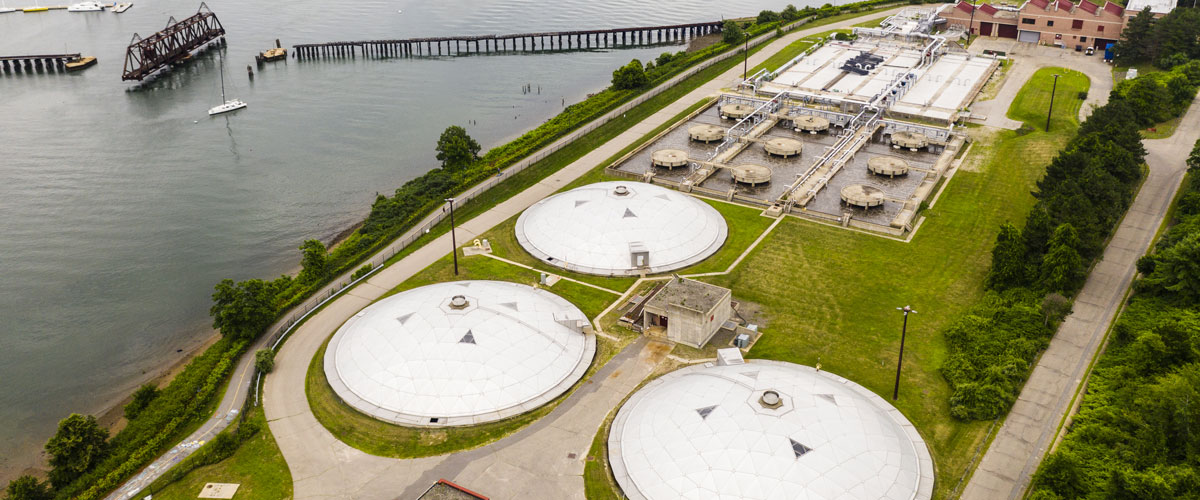

  • Portland Water District updated the aeration system at the East End Wastewater Treatment Facility in 2016 and 2017. Summer discharges of nitrogen to the Bay have dropped by nearly three quarters.
  • Atmospheric deposition of nitrogen has been declining for several decades, likely as a result of adoption of emission control technologies on power plants and automobiles; improved automobile fuel efficiency; and reduced reliance on coal for electrical generation. Further reductions in nitrogen deposition are likely with increasing adoption of electric vehicles and reduction in fossil fuel use.
  • Over the last five years, understanding of nitrogen in Casco Bay has improved thanks to focused efforts by Maine’s Department of Environmental Protection, the University of Maine, Friends of Casco Bay, and Casco Bay Estuary Partnership. More research is needed to characterize terrestrial sources, understand how water movement affects nutrients in the Bay, and learn how recycling of nutrients from the Bay’s sediments affects water quality.
  • Controlling nitrogen delivery in runoff from urban areas can be difficult. Most stormwater control structures are more effective at trapping phosphorus than nitrogen. “Green infrastructure,” which relies on living organisms for nitrogen control, can be more effective than traditional structures, but adoption has been slow.
Printer-friendly Version (PDF)

View a PDF version of this page that can be downloaded and printed.

Supplementary Information

View references, further reading, and a summary of methods and data sources.

Data Repository
Selected data and data analysis code for certain indicators are available for review.
